Tray With Magnets

Tray With Magnets


Experimenting using magnets to hold a cover on.




Using more of the leftover Sapele for the main tray, and a 1/4" piece of Cherry for the cover.

20240624_145404




First level drilled out. The plan is to go down 1/4", then leave a shoulder around the edge, and drill deeper in the middle for the actual storage space.

20240624_204016




Edges all chiselled up. Look at all those Forstner bit holes! Ug!

20240624_210811




Added a notch for a finger-hold. Then drilled a new depth, another 1/4", for the storage space.

20240625_204044

20240626_190139

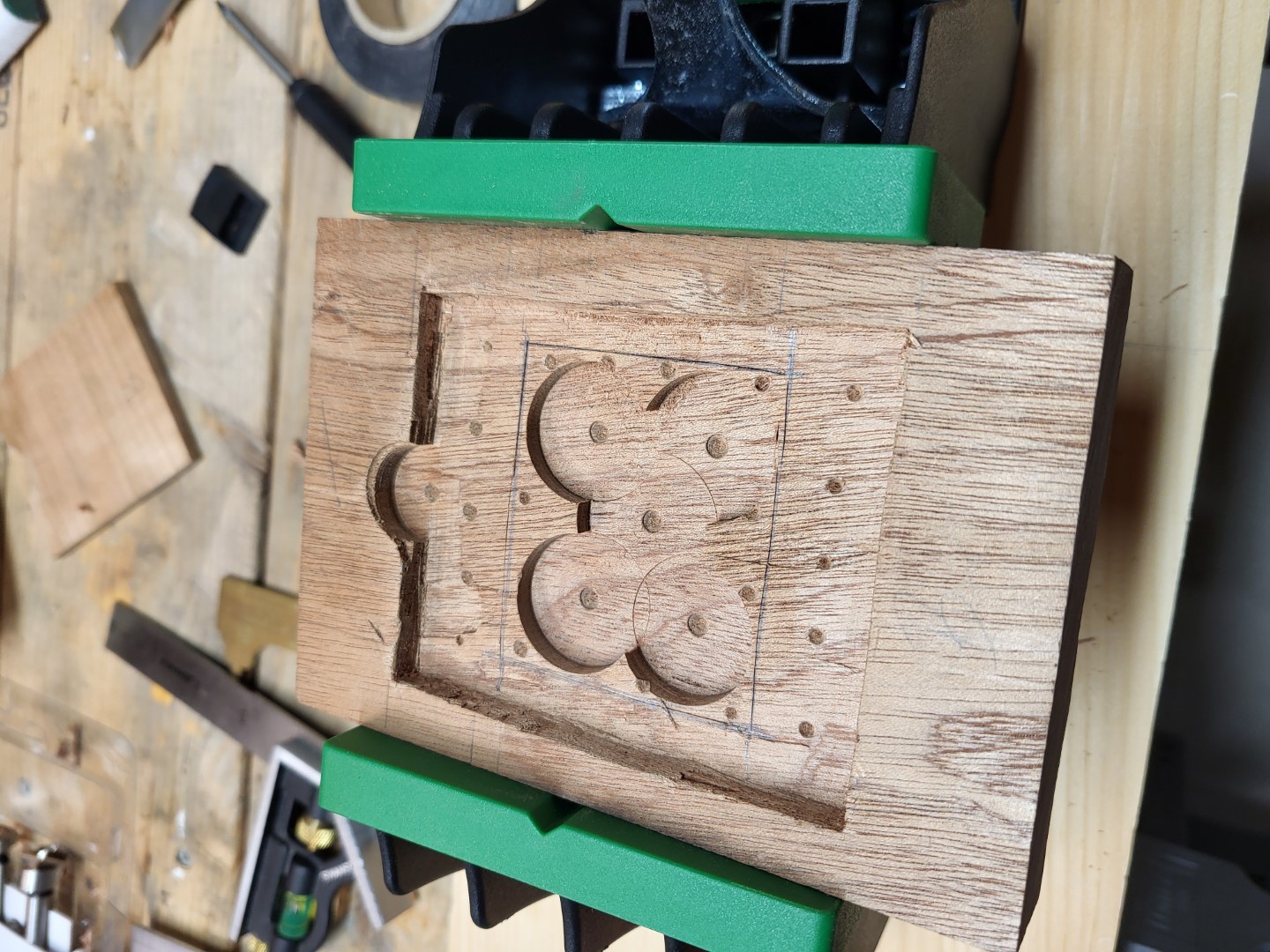

Both depths now straight-edged.

20240626_205247




New tool/technique - used a router plane to take out thin layers of the bottom section. This got rid of the holes.

20240626_211349

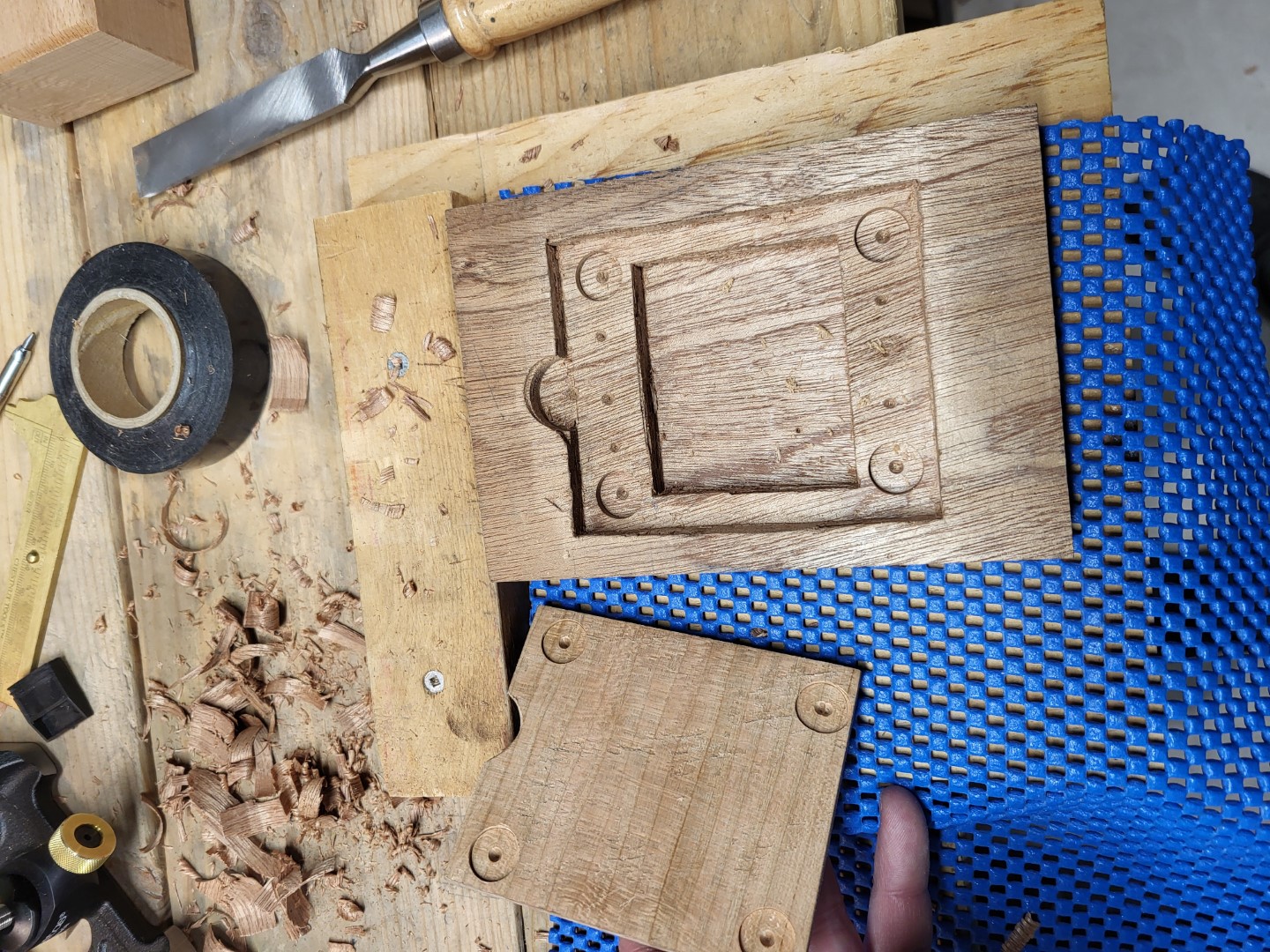

Bottom finished, and some small sink holes for the magnets and washers.

20240626_213658




A bunch of hand sanding, then an application of Tried and True finish on both the tray and the cover. Nice colors, nice contrast.

20240701_110004




Final product, with magnets and washers fixed with Krazy Glue. It's a bit messy, that glue, but does the job.

20240707_213523




Took a while, but fun playing around with things. In the end, I don't think I'm a big fan of the magnets, but will be good for some projects. The four magnets on this tray are quite strong - could have gotten away with two on this, I think. That lid will definitely not fall off on its own!

20240707_213530
